Home>Table drill>HS-Z25A>HS Z25A CE approval 25mm precision bench drill press from China high quality small table top drill mini press 1500W >= 1 pieces

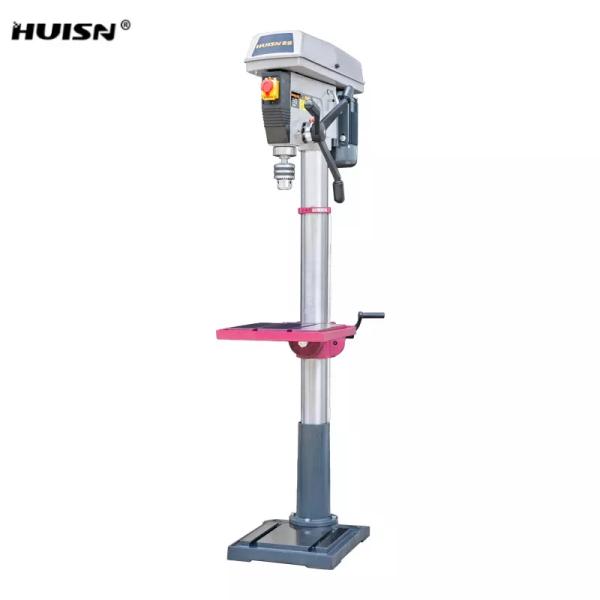

HS Z25A CE approval 25mm precision bench drill press from China high quality small table top drill mini press 1500W >= 1 pieces

HS Z25A CE approval 25mm precision bench drill press from China high quality small table top drill mini press 1500W >= 1 pieces

Item NO.: 20383191
Inquiry

Detail | FAQ

  • Product NameHS Z25A CE approval 25mm precision bench drill press from China high quality small table top drill mini press 1500W >= 1 pieces
  • Item NO.20383191
  • Weight110.0000 kg = 242.5085 lb = 3880.1358 oz
  • CategoryTable drill> HS-Z25A
  • BrandHUISN
  • Creation Time2022-10-26
  • Model Number:HS-Z25A
  • Max Drilling Diameter:25mm
  • Motor Power(W):1100/1500
  • Chuck Capacity(mm):5-20
  • Spindle Travel(mm):120
  • Class of Speed:12
  • Speed 50HZ:150-2450R.P.M
  • Speed 60HZ:180-2940R.P.M
  • Spindle Taper:MT3
  • Max. distance from Spindle axis:220
  • Max. distance from Spindle end:765
  • Max. distance from Spindle table:1225
  • Swing(mm):440

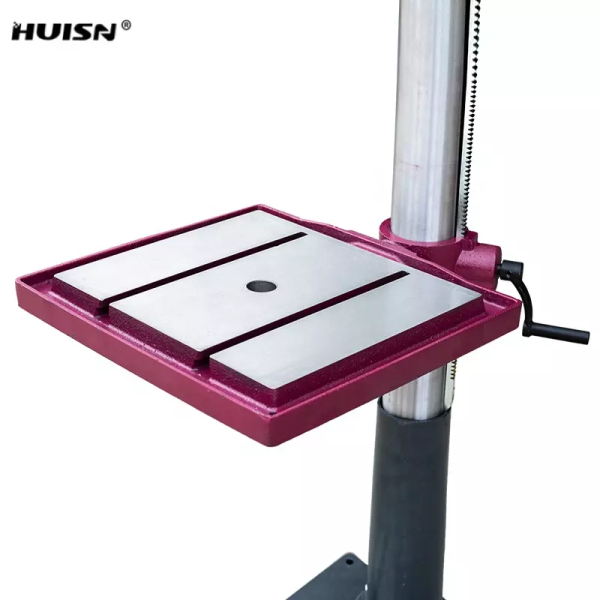

  • Table size(mm):350*350

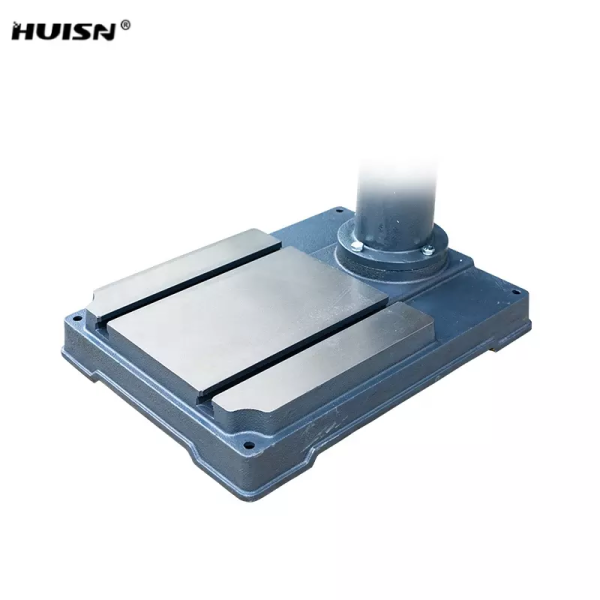

  • Base size(mm):470*360
  • Column Diameter(mm):92
  • Height(mm):1710
  • NW:106KG
  • G W:110KG
  • Packing size(mm):1415*650*305
  • 20'/40':95/240
  • Port：ShangHai Sea Port
  • Customized logo(Min. order 5 cubic meters)
  • Customized packaging(Min. order 5 cubic meters)
  • Graphic customization(Min. order 5 cubic meters)
  • Lead time:1 piece =15 days，>1 piece=To be negotiated
