Home>Milling & Drilling Machine>WMD30VB>HUISN WMD30VB Column Drilling and Milling Machine Mini Manual Metal Drilling Machine with DRO in Sliver Color

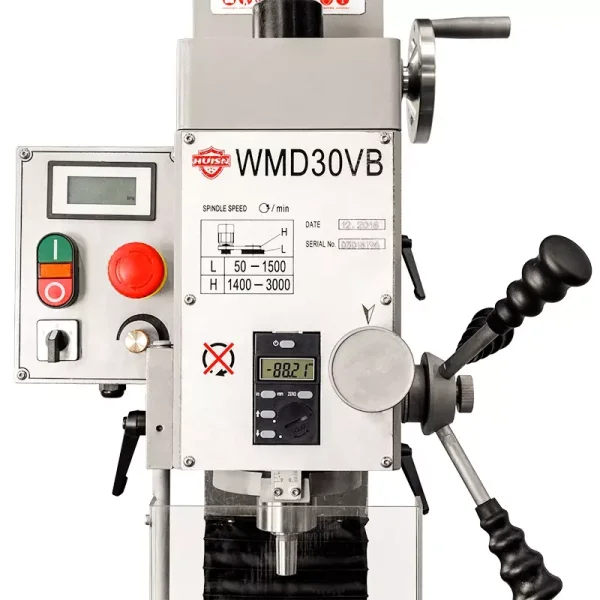

HUISN WMD30VB Column Drilling and Milling Machine Mini Manual Metal Drilling Machine with DRO in Sliver Color

HUISN WMD30VB Column Drilling and Milling Machine Mini Manual Metal Drilling Machine with DRO in Sliver Color

Item NO.: 20387078
Different models
WMD30VB
Accessories
not add DRO2axis DRO3axis Knife Cutter pedestal
Inquiry

Detail | FAQ

  • Product NameHUISN WMD30VB Column Drilling and Milling Machine Mini Manual Metal Drilling Machine with DRO in Sliver Color
  • Item NO.20387078
  • Weight260.0000 kg = 573.2019 lb = 9171.2301 oz
  • CategoryMilling & Drilling Machine> WMD30VB
  • BrandHUISN
  • Creation Time2022-10-26
  • Model Number:WMD30VB
  • Brand Name:HUISN
  • Max.drilling capacity:30mm
  • Max.tapping capacity:M16
  • Max.end mail capacity:20mm
  • Max.face mail capacity:76mm
  • Spindle taper:MT3/R8
  • Variable speed method:infinitely variable speeds
  • Range of rotation:50-3000pm
  • Spindle travel:50mm
  • Swivel angle of headstock: ±90°
  • Distance from spindle center to column：201mm
  • Distance from spindle end to worktable:45-300mm
  • Column stroke z：370mm
  • T-slots：3✖️12mm
  • Standard table size:840✖️210mm
  • Travel of standard workbench X/Y:840✖️210mm
  • Net/gross weight:260✖️220kg
  • Extended workbench travel X/Y：1100*1000*750mm
  • Motor power :1.5kw
  • Voltage:1500W/ 220V
  • Machinery Test Report: Provided
  • Video outgoing-inspection:Provided
  • Supply Ability:500 Set/Sets per Month
  • Packaging Details:plywood/carton
  • Shipping:Express/Ocean freight/Land freight/Air freight
  • Port:SHANGHAI/NINGBO
  • Customized logo(Min. order 5 pieces)
  • Customized packaging(Min. order 5 pieces)
  • Graphic customization(Min. order 5 pieces)
  • Lead time: 1 piece =14days,>1 piece =To be negotiated
