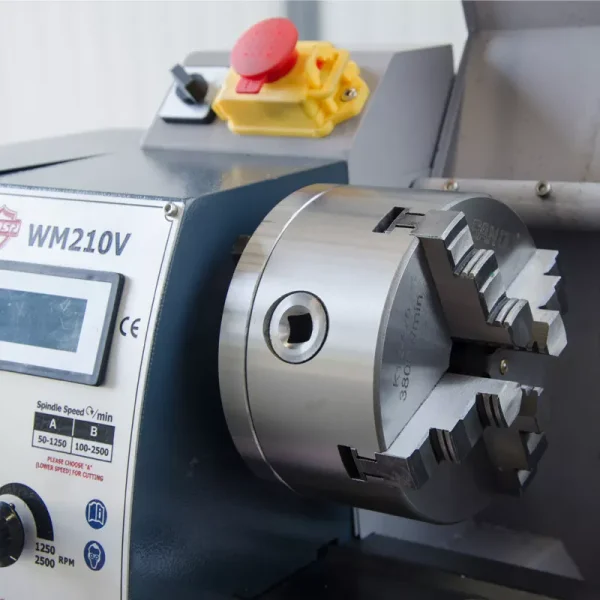

WM210V High Speed Precision Mini Lathe-

WM210V High Speed Precision Mini Lathe-

Item NO.: 20284562
Inquiry

Detail | FAQ | Electronic Manual

        Model           WM210V
        Swing Over Bed              210mm (8.27")
        Swing Over Cross Slide
          110mm ( 4.33")
        Distance Between Centers
          400mm (15.75")
        Width of Bed
          100mm (3.93")
        Hole Through Spindle
          21mm ( 0.82")
        Taper in Spindle Nose
          MT3
        Number of Spindle Speeds
          Variable
        Range of Spindle Speeds
          50-2500RPM
        Number of Metric Threads
          10
        Range of Metric Threads
          0.5~3mm( 0.01"~0.11")
        Number of Imperial Threads
          8
        Range of Imperial Threads
          8~44 T.P.I.
        Range of Longitudinal Feed
          0.1~0.20mm/rev (0.003"~ 0.007")
        Tool Post Type
          4-Way
        Maximum Compound Slide Travel
          55mm (2.16")
        Maximum Cross Slide Travel
          75mm (2.95")
        Maximum Carriage Travel
          376mm (14.80")
        Maximum Carriage Travel
          60mm ( 2.36")
        Taper in Tailstock Spindle
          MT2
        Main Motor
          1Ph / 550W, 230V ~ 50Hz / 110V ~ 60Hz
        Length×Width×Height
          840*340*390mm ( 33.07"*13.39"*15.35")
        Packing size
          900*450*450mm ( 35.43"*17.72"*17.72")
        Net Weight
          65KGS(143 lbs)
        Gross Weight
          75KGS(165 lbs)





Product advantages

- Highly suitable for processing steel, non-ferrous metals, and plastics

- Wide range of applications, including face turning, external turning, and thread cutting

- Change gears for both metric and imperial thread cutting come standard

- High-quality ball bearings ensure spindle nose concentricity better than 0.015 mm

- User-friendly, ergonomic control layout for easy operation

- Equipped with a leadscrew for thread cutting and automatic longitudinal feed

- Compact design with an excellent price-to-performance ratio

- Electronic, stepless speed control allows ideal adjustment for any workpiece
